Map Your Legacy PLC Data Tables into Your Siemens S7 PLCs
You can now map your legacy serial A-B PLCs data tables to your Siemens S7 PLCs! Any of your old serial PLCs like the PLC5 or SLC can now provide data to S7 PLCs. It’s the perfect tool to keep those old legacy PLCs from the scrap pile.

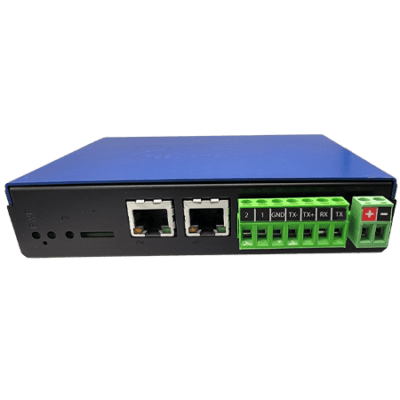

How Do I Use the 460DHMSC-D2E in My Application?
For most applications, the mapping is very straightforward. PLC data table values like N7:200 and F9:1 are mapped directly into your Q and I addresses in your Siemens S7 PLCs. No message instructions and no ladder to alter in many cases.
What Is DH+ and What It Can Do for You?
Discover whether DH+ aligns with your specific needs. Check out our DH+ tech page — DH+ introduces a token-passing type network where each node receives the token and can transmit messages only when holding it. When you connect your Siemens S7 PLCs to a DH+ device you can effectively control and automate your industrial processes.
Why Use Real Time Automation as a Gateway Supplier?
While there are certainly other companies offering protocol gateways, there is no one who provides the level of support and service that you receive from Real Time Automation. When you call us, a live person answers the phone. If you talk with our sales team, you will get honest answers and recommendations. And rest assured, all the support you get is from an engineer who had a hand in the product’s development, and support doesn’t need a ticket or 24-hour wait. We get back to you as soon as possible. It’s an RTA promise.
DH+ Features
Operation Mode: DH+ MasterPLCs Supported: 5/04, PLC5
Maximum Devices Supported: 32
Scan Lines: 100 input / 100 output
Supported Data Types: 100 Integers or 100 Binaries, or 50 floats, 82 character string per Scan line
S7 Client Features
PLC Support: S7 300/400/1200/1500Maximum Number of PLCs Supported: 5
Maximum Number of Inputs per PLC: 150
Maximum Number of Outputs per PLC: 150
Array Support: Yes, for all data types
Supported Data Types: 8Bit Int, 16Bit Int, 32Bit Int, 32Bit Float, Bool and String
